PIC Programer Parallel Port



I designed it with following

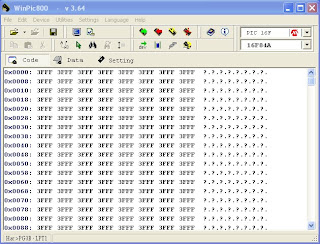

  • WinPIC-800 (V3.64)
  • Hardware (PG3b)
  • PC Parallel Port
  • 12-20V/DC Power Supply

In this programmer i modify the (PG3b) with my own techniques,First i modify the Parallel port cable that's one side is DB-25 (Male) connector and other side is DB-9 (Female) connector and this DB-9 (Female) Connector is plugin in DB-9 (Male) connector which is on the Programmer Board.This process that i do just only for the reducing the extra space of Programmer Board and make it much more efficient in working mode.All pictures and Fully operationally Working Video are attached.



To get COMPLEATE PROJECT in working and tested condition feel free to contact with me just click on "About" link


NOTE: ALL OF DATA OR METERIAL ON THIS BLOG IS JUST ONLY FOR STUDYING OR LEARNING PURPOSE ONLY
